eFlow 800Hseries is flange type Electromagnetic Heat or BTU meter that can be used for measuring energy consumption in heating or cooling application for HVAC and other energy measurement and metering installations. The flow measurement principle is using Faraday’s law of electromagnetic induction to measure flow rate of electrically conductive liquids like hot or cold water applications. Together with a pair of PT1000 temperature sensor the calculator or converter will calculate the energy consumption.
Features + Benefits
– No moving part therefore wearfree and maintenancefree
– High accuracy at ±0.5% value of reading
– Through flow design with unobstructed flow within the measuring pipe
– Low pressure drop
– Dual direction flow measurement function
– Can be used for leakage detection function
– Heating and cooling application
– Wide range of Output interface option of Mbus/Modbus/Pulse and others option interface
– Mounting of the electromagnetic flow sensor in any position
– Intelligent design and easy to use
Applications
Applications
– Residential or Commercial Buildings metering and submetering
– District heating / cooling
– Energy Management
– Green Energy Management
– HVAC
Specifications
SPECIFICATION
1.0 Flow Sensor Specifications

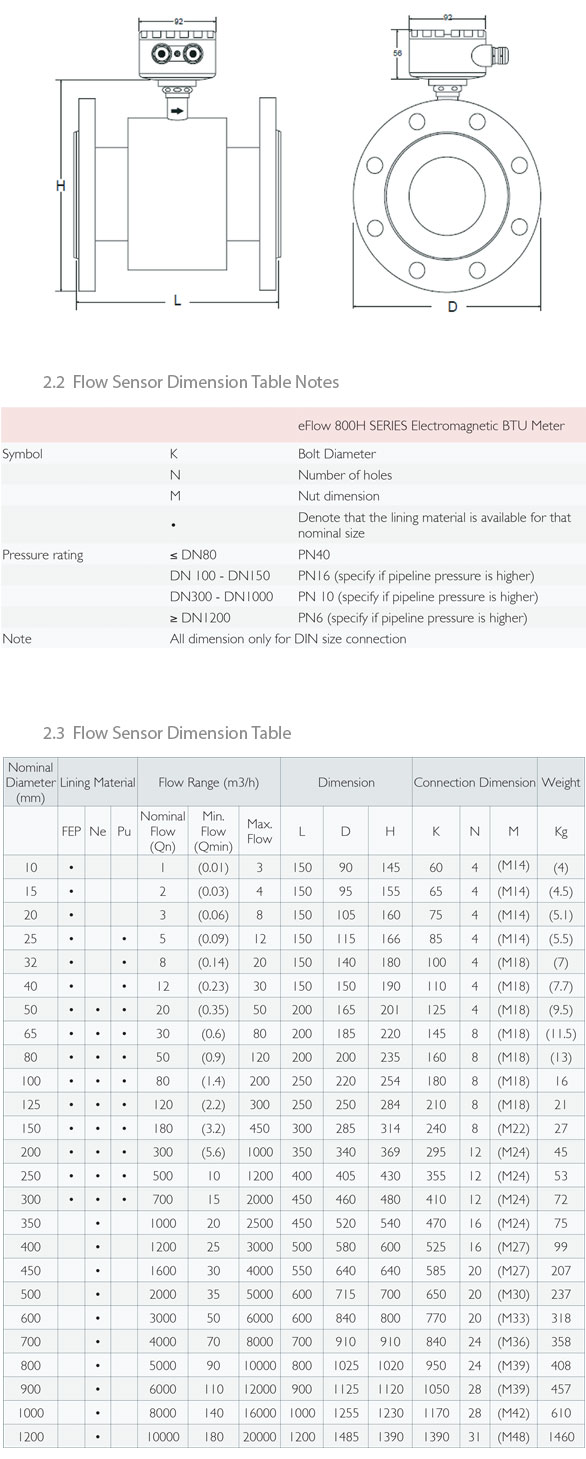

2.0 Flow Sensor Dimension Specifications

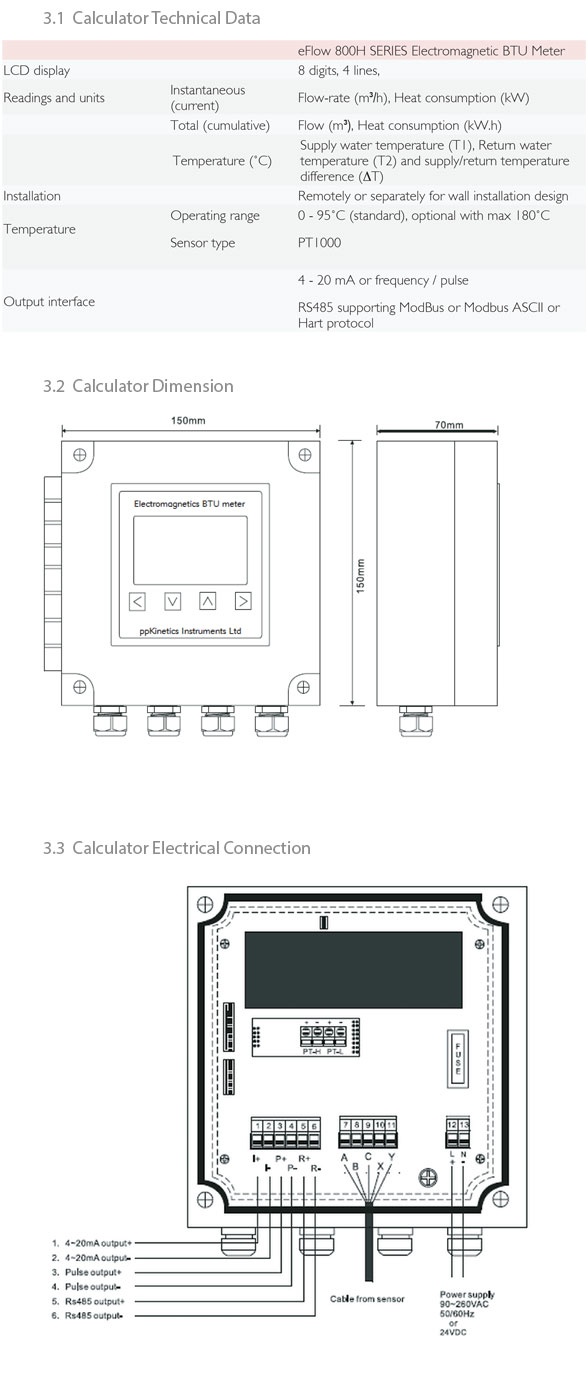

3.0 Energy Calculator Specifications

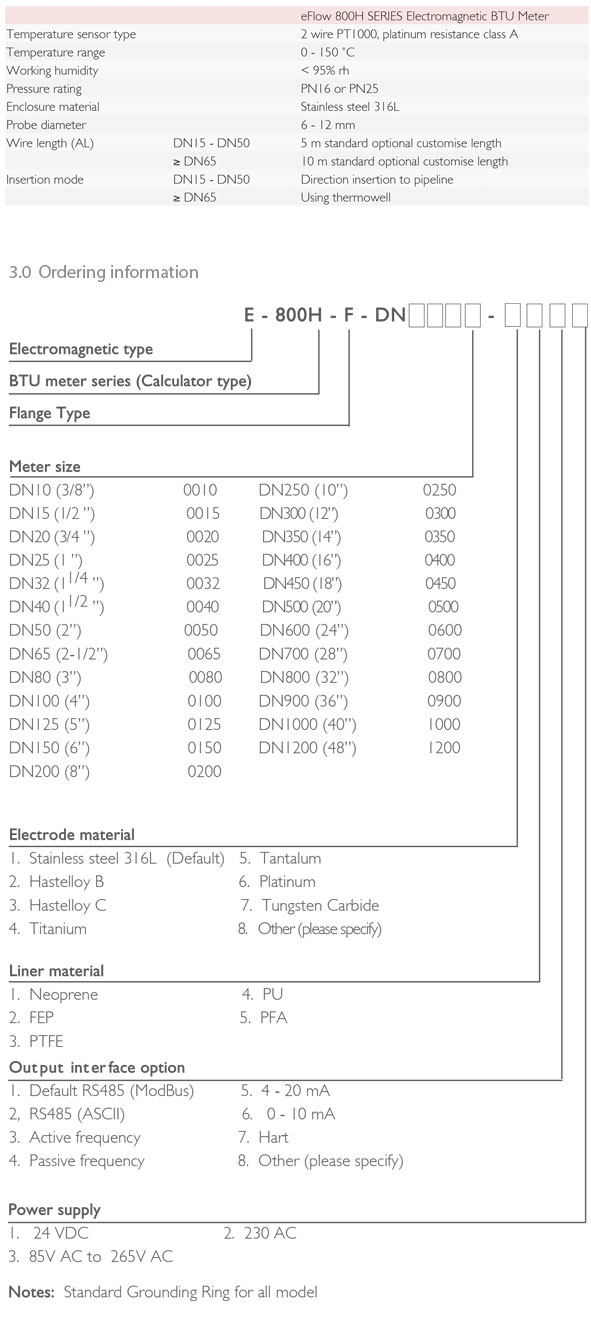

4.0 The Temperature Sensors Specifications
Brochure
