220HC series uFlow compact type ultrasonic Heat or BTU meter can be used for measuring energy consumption in heating/cooling application in submetering billing or HVAC measurement and control purposes. The measurement principle is static and based on the measurement of transit time with a pair of ultrasonic transducer propagating at each other one upstream and the other downstream. It is a non reflective design and the benefit is significant because over time, heating and cooling flowline become dirty and begin to affect typical reflective designs. This eliminates impending failures and allows the meter to continue to capture measurements regardless of liquid quality.
Features + Benefits
– No moving part therefore wearfree and maintenance free
– Through flow design without reflective parts
– Robust performance in clear and dirty water
– Low pressure drop
– Heating and cooling application
– Battery powered to last min 5 years
– Automatically switch to Mbus or Modbus power when available
– Output interface option of Mbus/Modbus/Pulse and others option interface
– Class 2 accuracy
– Mounting of flow sensor in any position
– Wired or wireless meter reading
– Reading unit can be switched freely from KWH to GJ
– Patented waterproof technology and can work under extreme humid environments
Applications
Applications
– Residential or Commercial Buildings submetering
– District heating / cooling
– Energy Management
– Green Energy Management
– HVAC
– AMR/AMI and Billing
Specifications
SPECIFICATION

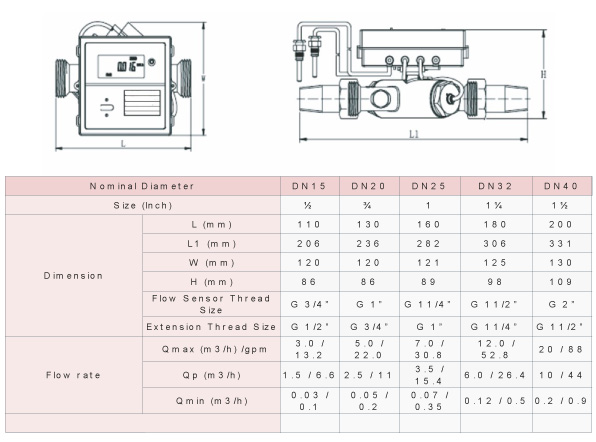

1.0 Dimension
2.0 General specifications
