Household Water Meters

uFlow 330WD Series

Contact Sales

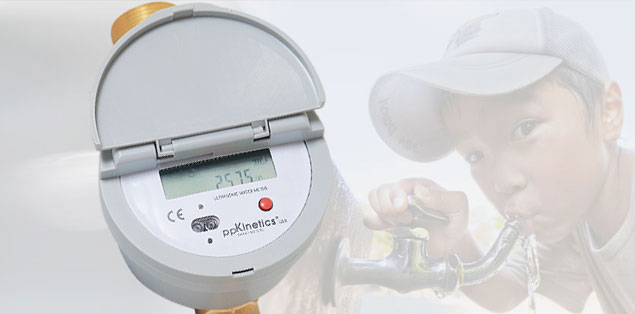

  • water-meter2-new

  • water-meter1-1

  • water-meter2

9WD-C compact size ultrasonic type water meter is specially designed to suit urban water supply pipeline network and also the diversified industrial conditions. This product adopts ultrasonic transit-time differential measurement technology in a pair of ultrasonic transducers to deliver precise measurement. It does not have any moving parts that can wear out, thus, literally requires no maintenance. In a long run, users can benefit a lot from its features.

Features + Benefits

– No moving parts therefore wear-free and maintenance-free
– Robust performance in either clear or dirty water.
– Low pressure drop
– Adopt German technology time detection chip GP2 with 50 picoseconds accuracy
– Powered by battery which is capable of working continuously for 6 years with a single cell
– Excellent long-term stability, accuracy does not degrade over time.
– Can be installed vertically or horizontally
– Free from the influence of impurities, chemicals and magnetic substances.
– Remote read out options: Pulse / RS485 / Mbus
– Optional BACnet/ wireless interface
– Optional AMR software
– Low cost over long run

Applications

OPERATION PRINCIPLE

Two ultrasonic transducers work as transceiver and also receiver. Under the control of integrator, both ultrasonic transducers will transmit and receive ultrasonic pulse alternately. The time taken by the ultrasonic pulse to travel downstream and upstream will be measured. The time taken by the ultrasonic pulse to travel is directly proportional to the velocity of the water. Ultrasonic transit-time differential technology unique algorithm can use the difference of both pulses travel time to determine the flowrate of the water.



Dimensions

Water-Meter-UFlow-9WD-C

Specifications

GENERAL SPECIFICATION


  • Accuracy
    Pressure rating
    Pressure loss
    Turndown ratio
    Safe Class of Climate and Mechanical Environment
    Sensitivity of upstream/ downstream field
    Environmental class
    Electromagnetic class
    Permissible temperature
    Protection class
    Display
    Integrator’s cover material
    Pipe material

  • Class 2
    1.6MPa / 1.0MPa
    0.063MPa
    Qmax/Qmin = 100
    Class C

    U5/D3
    A/B
    E1
    30°C / 50°C
    IP 68
    8 digits LCD
    Plastic
    Stainless steel
