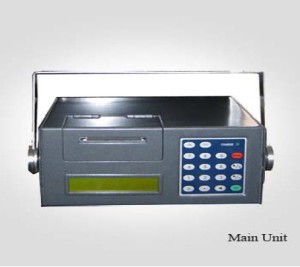

TDS-100P is a portable ultrasonic flow meter, with built-in printer, high accuracy and is battery-powered for ease of use.
● ±1% accuracy
● 0.2% of repeatability
● 2×10 English letters LCD display
● Operate with clamp on transducers
● Pipe diameters from 15mm to 6000mm
● RS 485 interface
● Built-in thermal printer
● Ni-MH battery operation of over 24h

– Residential or Commercial Buildings metering and submetering
– District heating / cooling
– Energy Management
– Green Energy Management
– HVAC
– Oil and Gas
– Pharmaceuticals
– Chemicals

1.0  Ultrasonic Flow Meter Specifications

Linearity	0.5%
Repeatability	0.2%
Accuracy	±1% of reading at rates > 0.2mps
Response Time	0-999 seconds, user configurable
Velocity	±32m/s
Pipe Size	20mm-6000mm
Rate Units	Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallon and user configurable
Totalizer	7-digits totals for net, positive and negative flow respectively
Liquid Type	Virtually all liquids
Security	Setup Values Modification Lockout. Access code required for unlocking
Display	4×8 Chinese characters or 4×16 English letters
Communication Interface	RS-232C, baud-rate : from 75 to 57,600. Protocol made by the manufacturer and is compatible with that of Fuji Ultrasonic flow meter. User protocol can be be made on enquiry
Transducer	Standard Model M1 with options for 3 others
Transducer Cord Length	Standard 2x10meters, options for 2x500meters
Power Supply	3 AAA Ni-H built-in batteries. When fully recharged, it will last over 10hours of operation. 100V-240V source for battery charging
Data Logger	Built-in data logger can store over 2,000 lines of data
Manual Totalizer	7-digits press-key-to-go totalizer for calibration
Housing Material	ABS
Case Size	100mmx66mmx20mm
Handset Weight	514g (1.2lbs) with batteries
