Features + Benefits
Applications
– Residential or Commercial Buildings metering and submetering
– District heating / cooling
– Energy Management
– Green Energy Management
– HVAC
– Oil and Gas
– Pharmaceuticals
– Chemicals
Specifications
1.0 Ultrasonic Flow Meter Specifications
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates > 0.2mps |
| Response Time | 0-999 seconds, user configurable |
| Velocity | ±32m/s |
| Pipe Size | 20mm-6000mm |
| Rate Units | Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallon and user configurable |
| Totalizer | 7-digits totals for net, positive and negative flow respectively |
| Liquid Type | Virtually all liquids |
| Security | Setup Values Modification Lockout. Access code required for unlocking |
| Display | 4×8 Chinese characters or 4×16 English letters |
| Communication Interface | RS-232C, baud-rate : from 75 to 57,600. Protocol made by the manufacturer and is compatible with that of Fuji Ultrasonic flow meter. User protocol can be be made on enquiry |
| Transducer | Standard Model M1 with options for 3 others |
| Transducer Cord Length | Standard 2x10meters, options for 2x500meters |
| Power Supply | 3 AAA Ni-H built-in batteries. When fully recharged, it will last over 10hours of operation. 100V-240V source for battery charging |
| Data Logger | Built-in data logger can store over 2,000 lines of data |
| Manual Totalizer | 7-digits press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 100mmx66mmx20mm |
| Handset Weight | 514g (1.2lbs) with batteries |

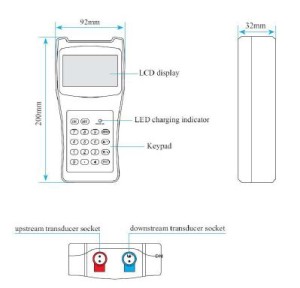

2.0 Ultrasonic Flow Meter Dimensions
3.0 Standard Package
Pack securely and safely in a stylish all Aluminium carrying case.
Dedicated shielded transducer cable 2x5m

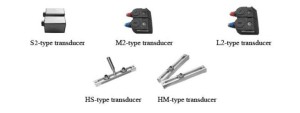

Transducers – please refer to section on TDS-transducers
Brochure
Coming Soon
